JCP Loose Bolt Shield Anchor 70mm (Pack of 50)

Product code: ALB0625

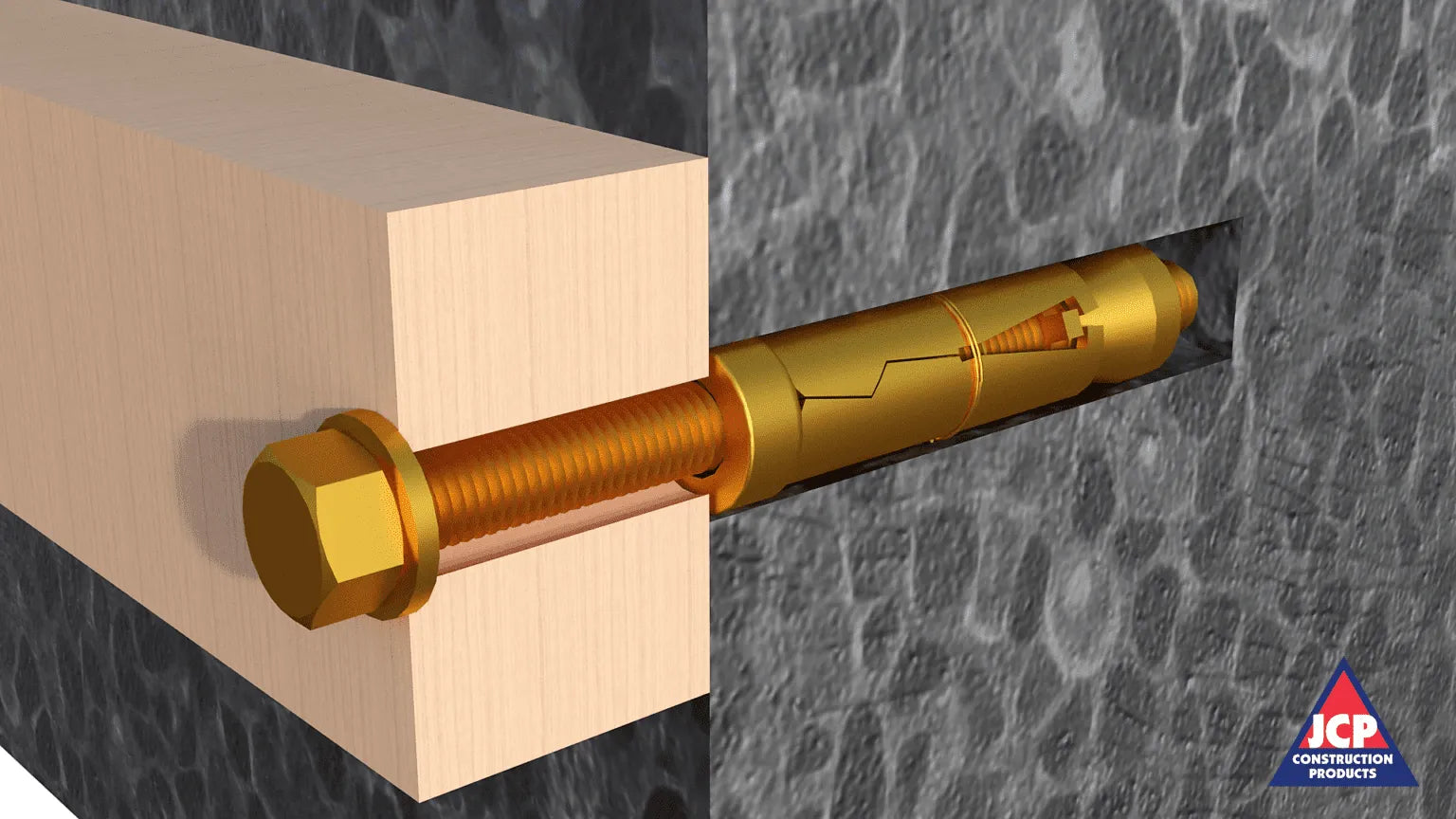

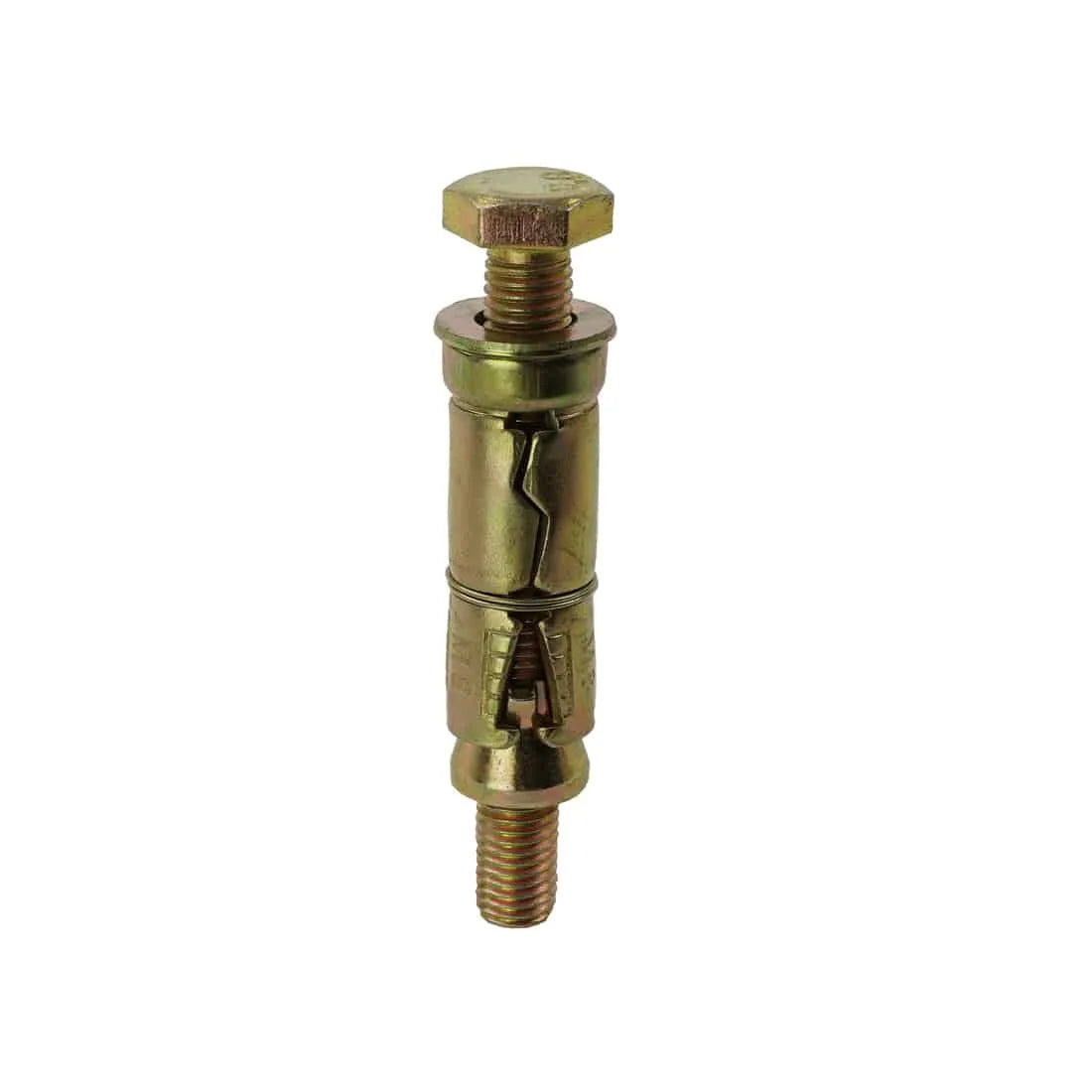

The loose bolt shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

• All steel anchor
• Torque controlled expansion
• Medium to heavy duty loads

Specifications:

• Finish: Zinc and Yellow Plated (ZYP)
• Base materials: Non-Cracked Concrete C20/25 To C50/60, Solid Concrete Blocks, Solid Brickwork
• Applications: Security Shutters, Gates, Pipe and Ductwork, Fencing, Fire Doors

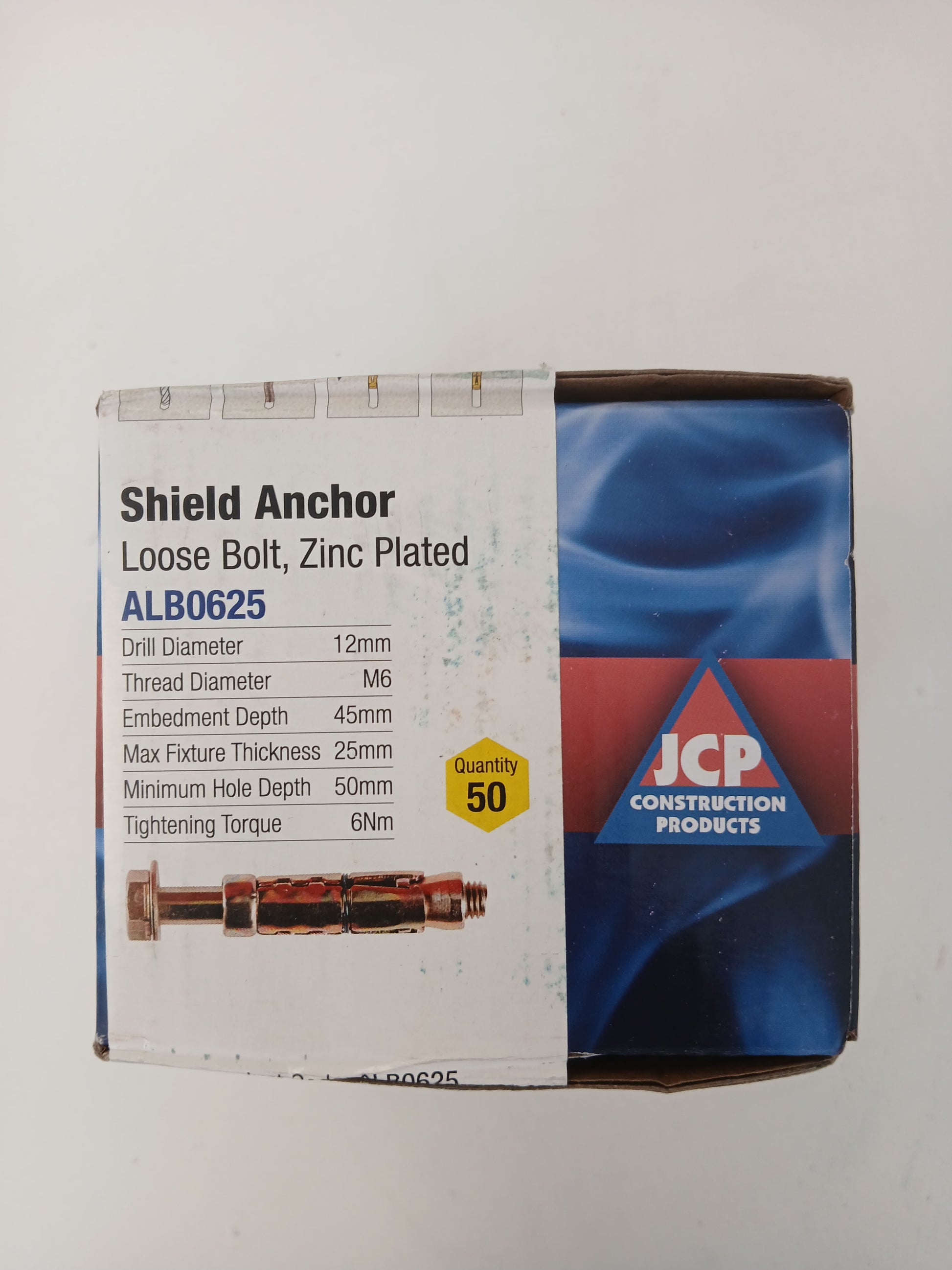

• Thread Diameter(d_nom) mm: 6
• Length Under Head(L) mm: 70
• Hole Diameter (mm): 12
• Max Fixture Thickness(t_fix) mm: 15
• Fixture Clearance Hole(d_f) mm: 7
• Embedment Depth(h_nom) mm: 45
• Min Hole Depth(h₁) mm: 50
• Min Structure Thickness(h) mm: 100
• Installation Torque(T_inst) Nm: 6

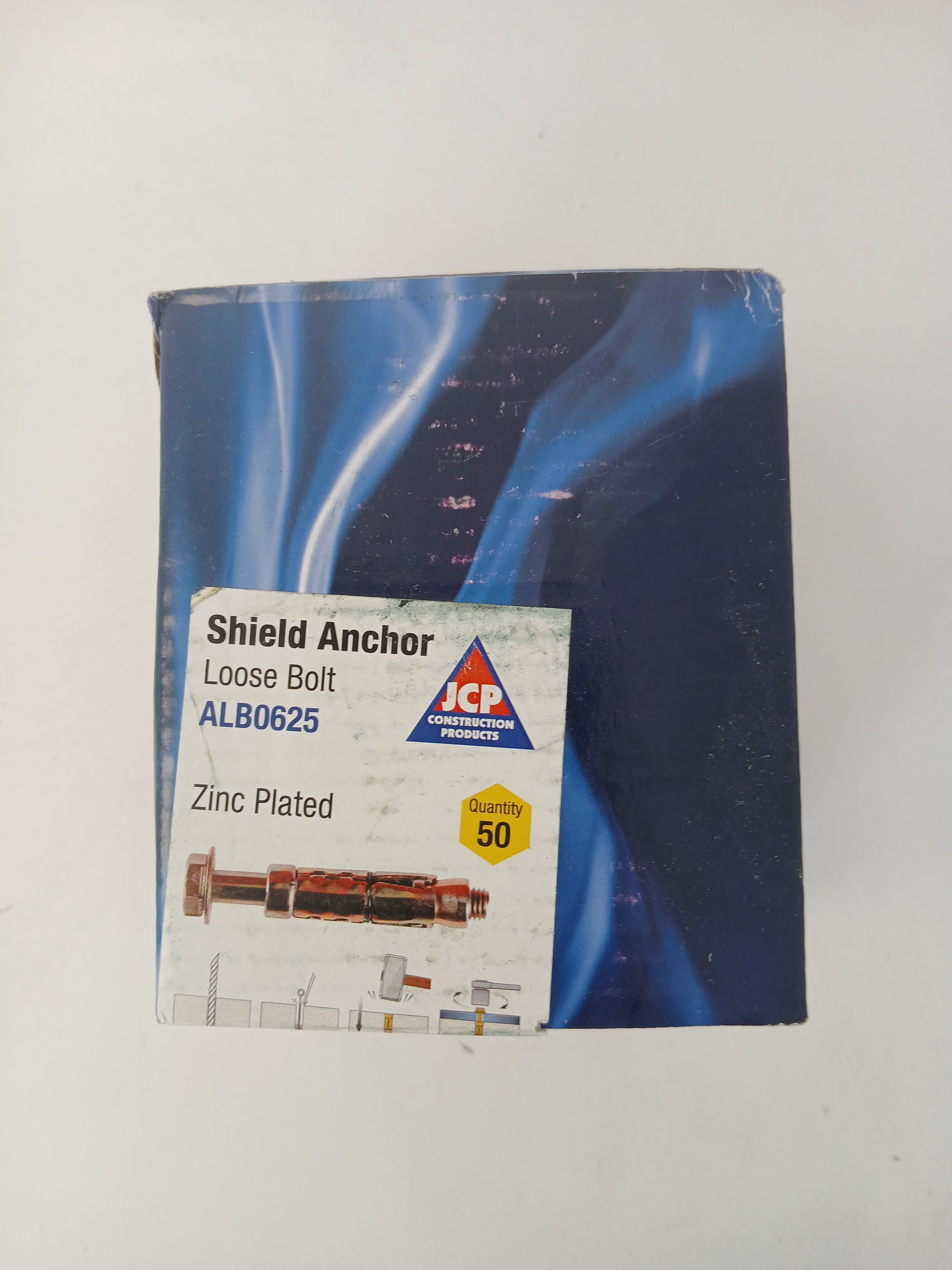

*Packaging on these products may be damaged or showing signs of wear and tear and may be reboxed but all products are in good working condition. These products are non-returnable and non-refundable and once they are gone they are gone.
