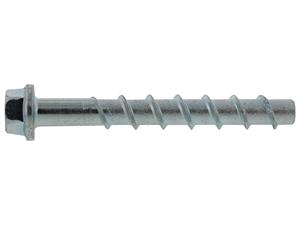

SPIT TAPCON HFL XTREM Self Tapping Screw (Pack of 50)

Product code: 058733

Self tapping screw with hexagonal head for fastening into cracked & non -cracked concrete & for seismic applications. ETA Seismic Approved, fire rated, industry leading high performance concrete anchor.

• Complete range ETA Option 1 can be used in cracked & non -cracked concrete
• TAPCON XTREM range approved for C1 and C2 seismic applications
• Fire approval
• Longer effective thread allows highest performance within the market
• New patented thread design provides easy setting
• Adjustable anchor for re-alignment without loss of performance
• Removable anchor allows for temporary fixings
• Large choice of drilling diameters, heads & lengths

Applications: Formwork, Mechanical and electrical, Façade and curtain walls, Demolition, Safety barriers and hand rails, Security gates and fencing, Racking and storage, Machinery and equipment, Stadium seating, Signage and lighting, Infrastructure - energy, road, rail, HVAC.

Specifications:

• Diameter Anchor: 8 mm
• Drill Hole Diameter: 8 mm
• Anchor Length: 50 mm
• Head Type: Hexagonal head
• Min. Thickness Base Material: 100 mm
• Min. Embedment Depth: 45 mm
• Max. Fixing Thickness: 5 mm
• Min. Edge Distance: 40 mm
• Min. Fixing Distance: 40 mm
• Clearance Diameter: 12 mm
• Min. Drilling Depth: 55 mm
• Anchor Wrench Size: 13 mm
• Base Material Colour: GREY

*Packaging on these products may be damaged or showing signs of wear and tear and may be reboxed but all products are in good working condition. These products are non-returnable and non-refundable and once they are gone they are gone.
